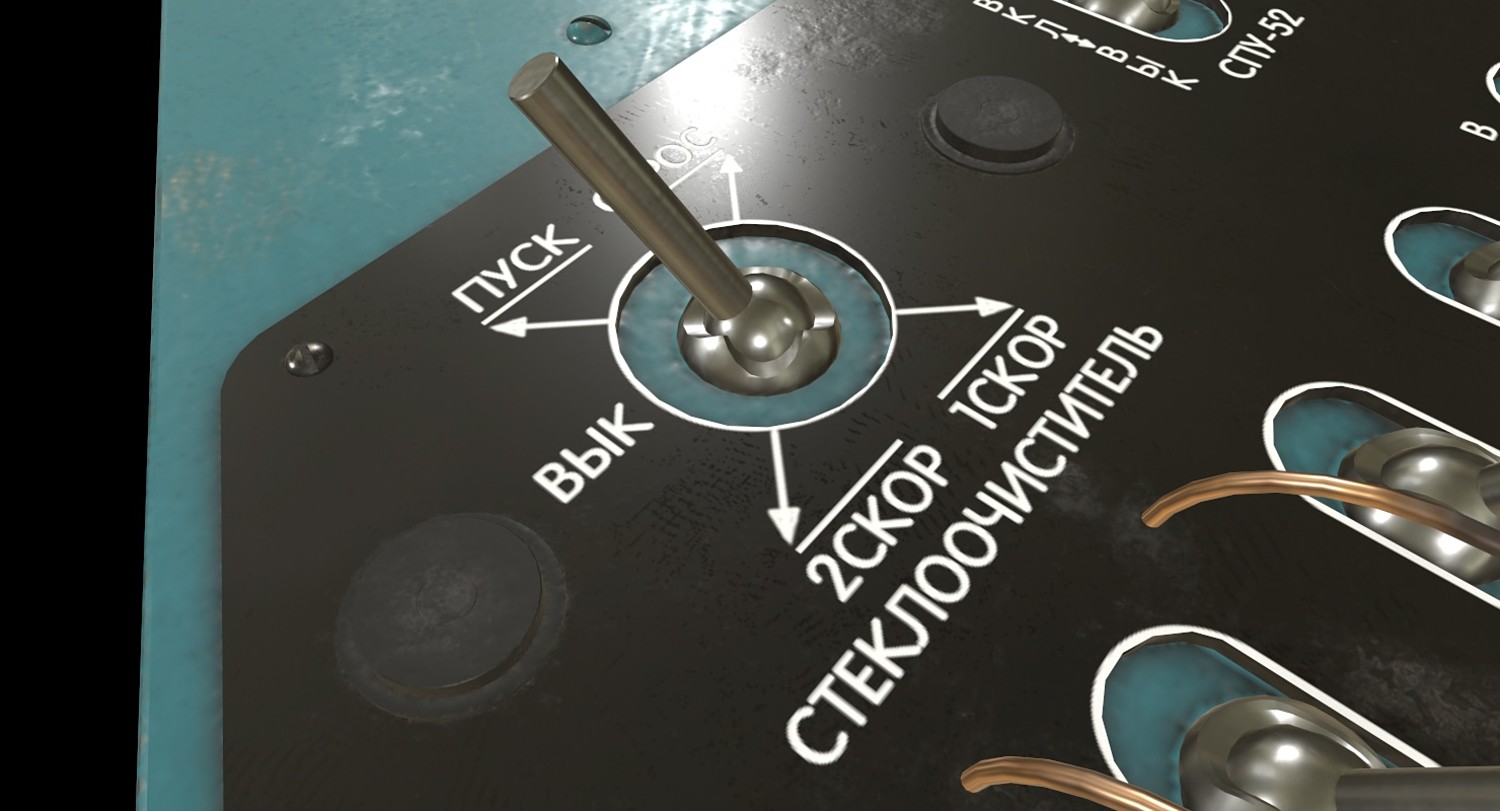

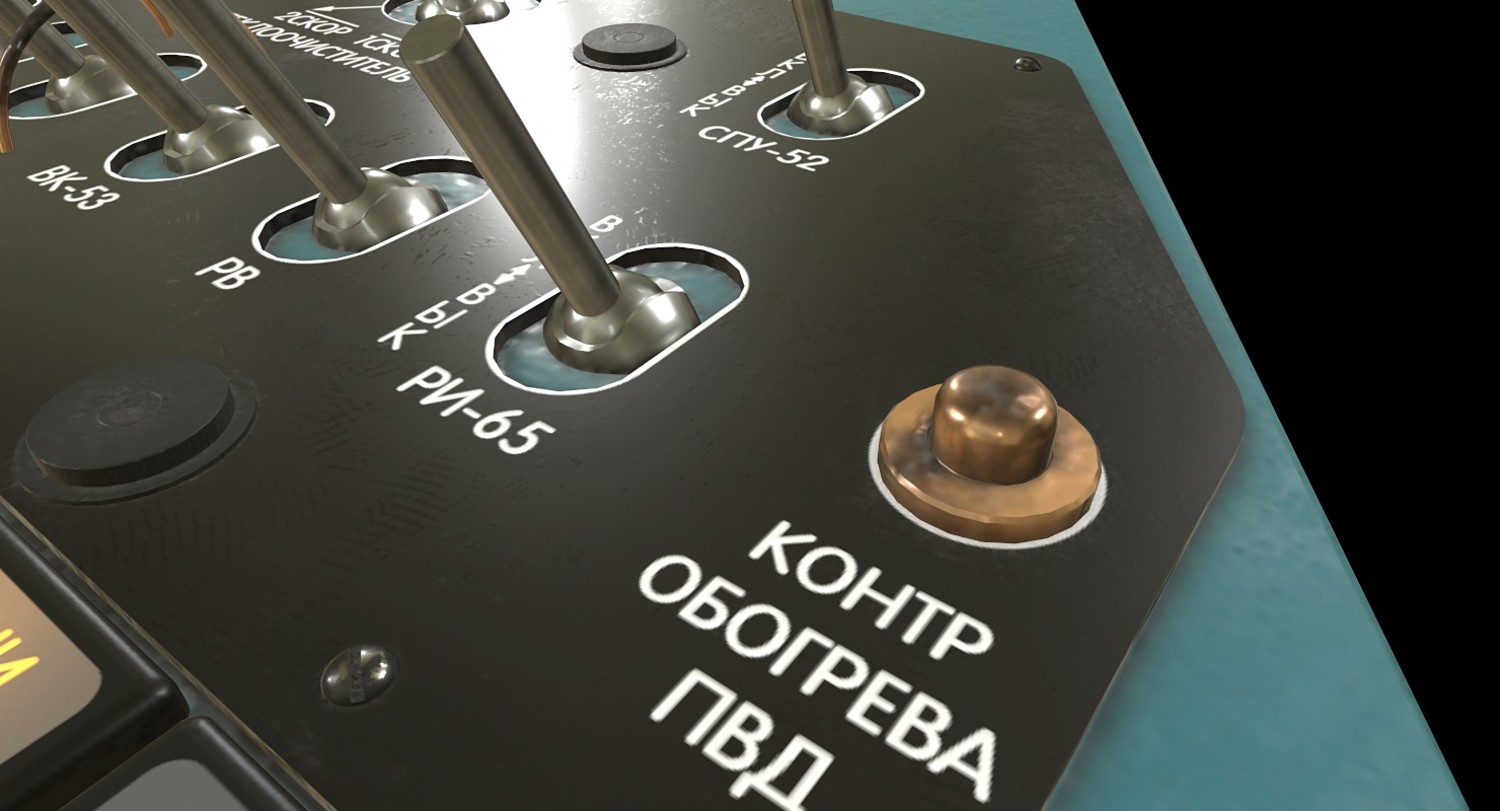

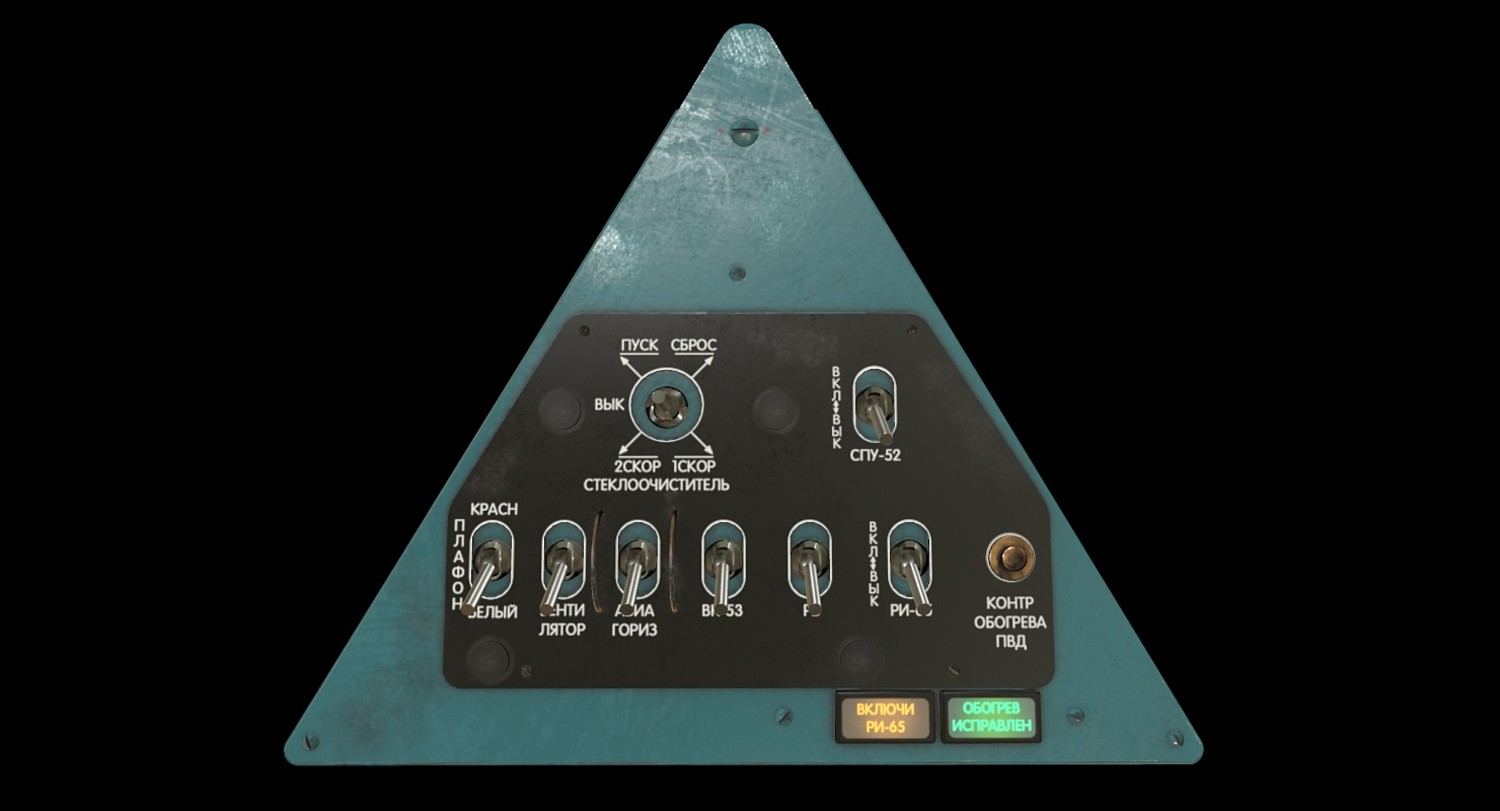

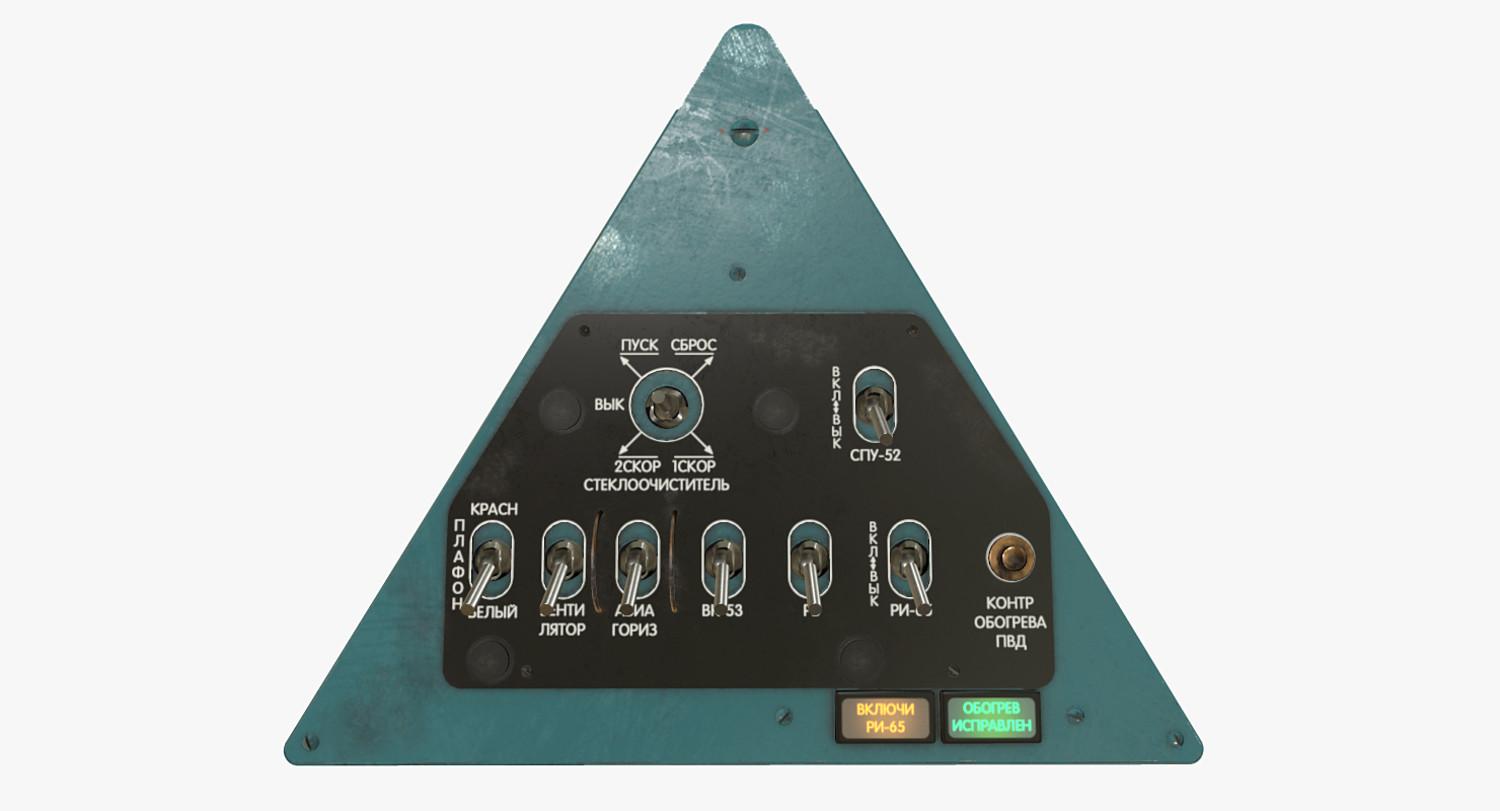

Realistic 3d model of Left Triangular Panels Board of Helicopter Mi-8MT / Mi-17MT

Game ready - perfectly fits for Unity and Unreal Low poly Real world scale Units used: cm

• The model is animated. All pivots are in the right positions.

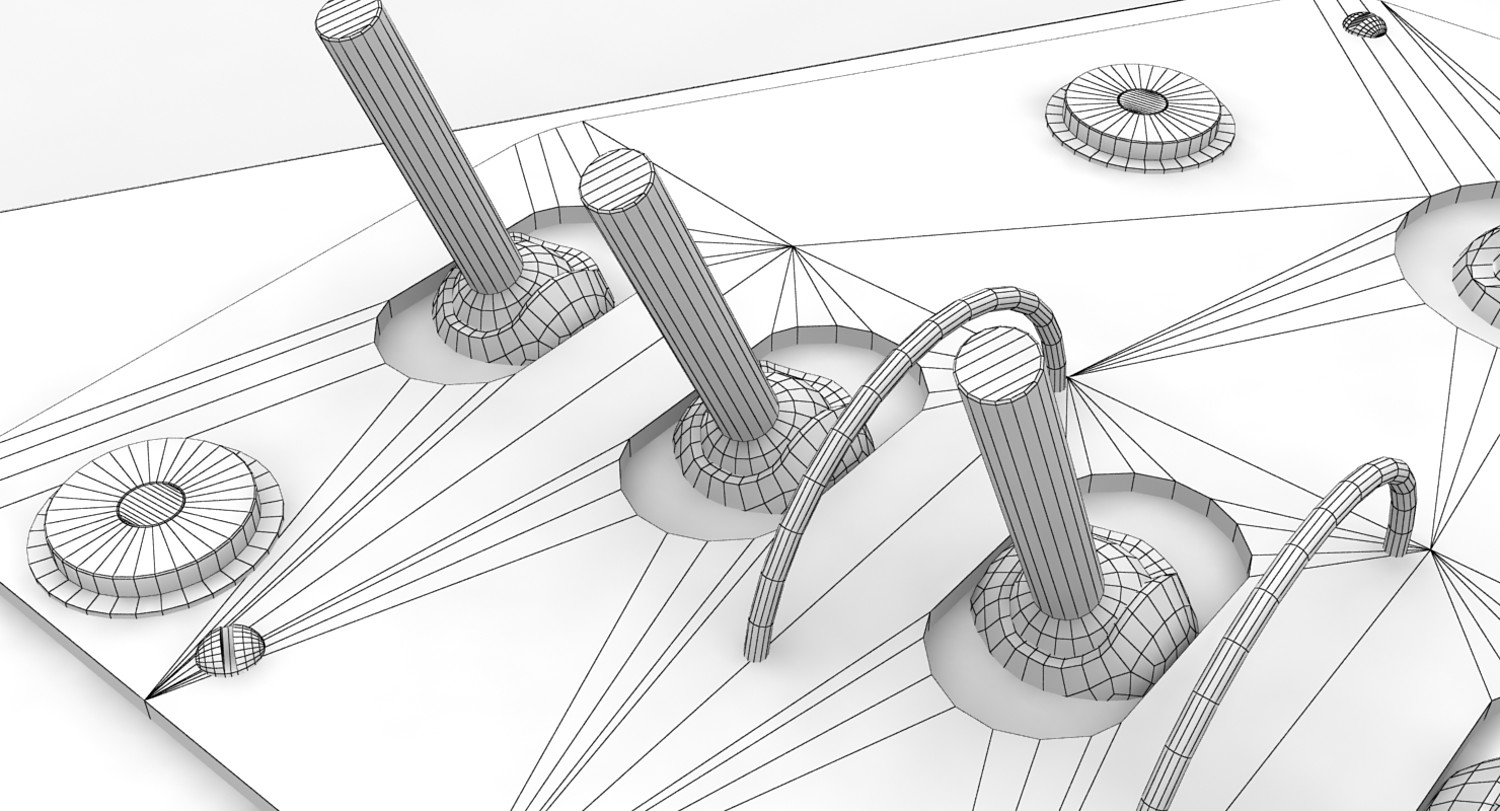

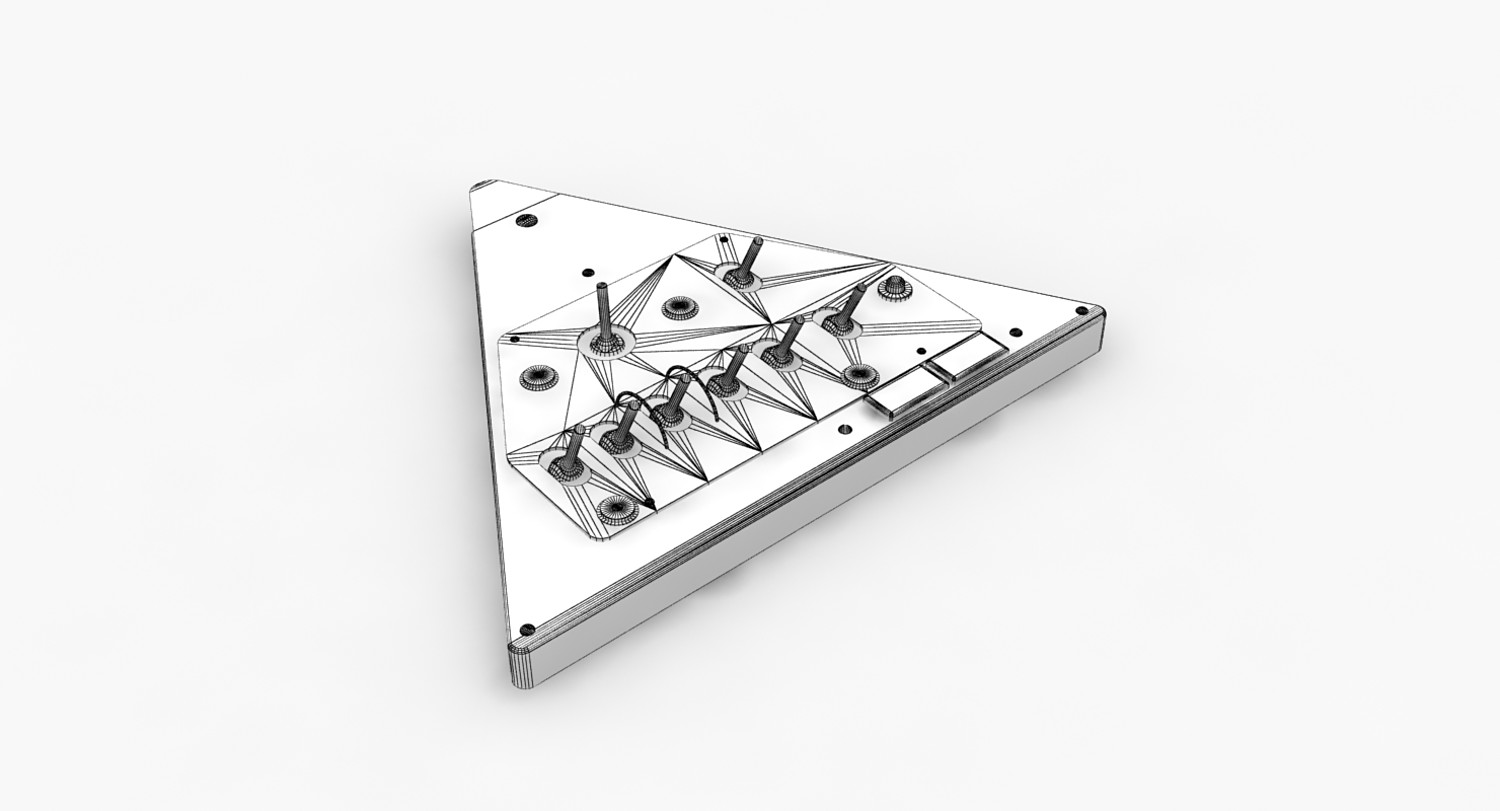

• The model has trialngular and quadrangular polygons only (11.4% tris and 88.6% quads)
• The model has logical hierarhy
• The model has 100% Scale, placed in 0,0,0 coordinates and doesn't have rotations

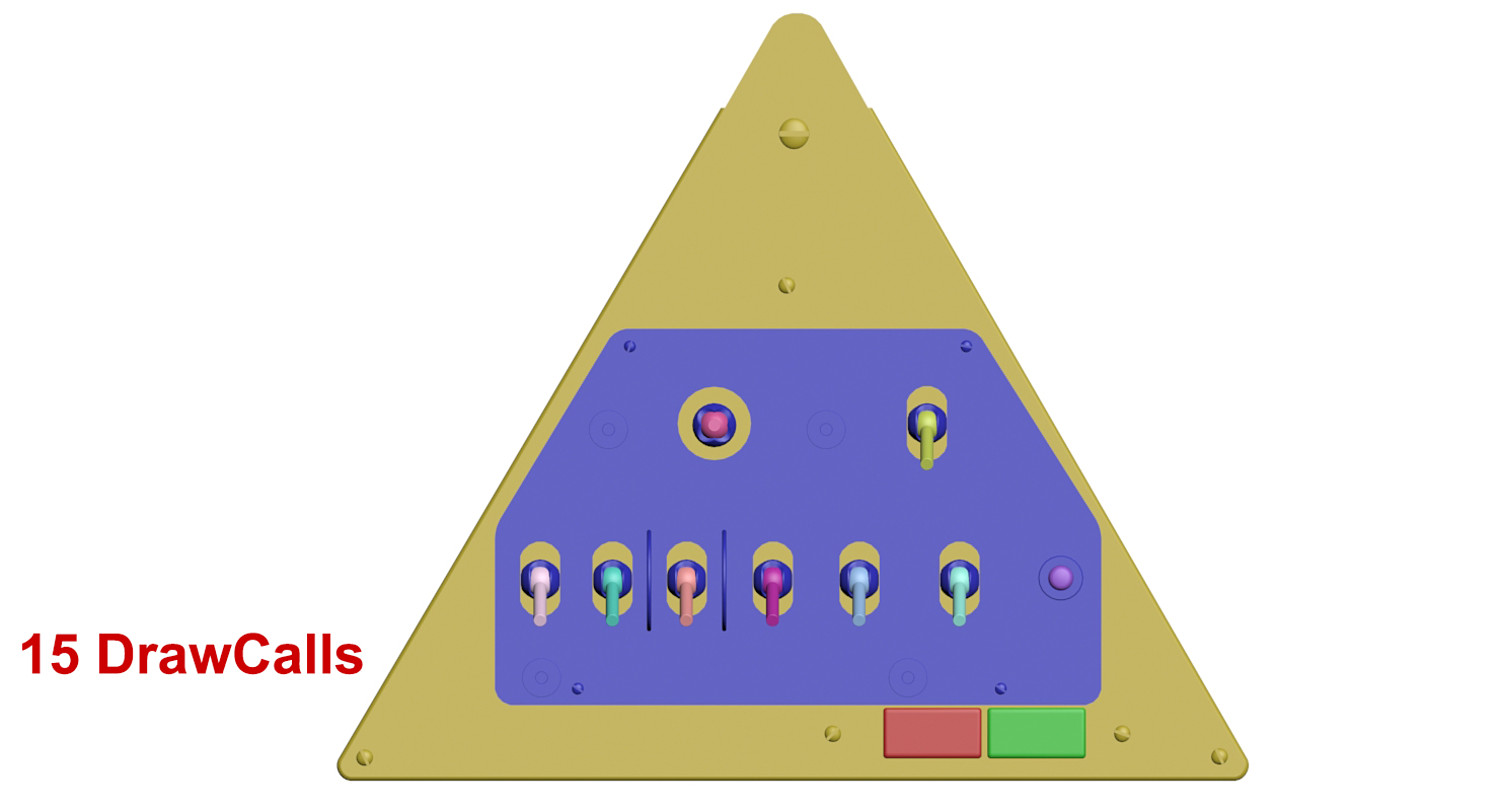

• The model has 15 separate objects (Draw Calls)

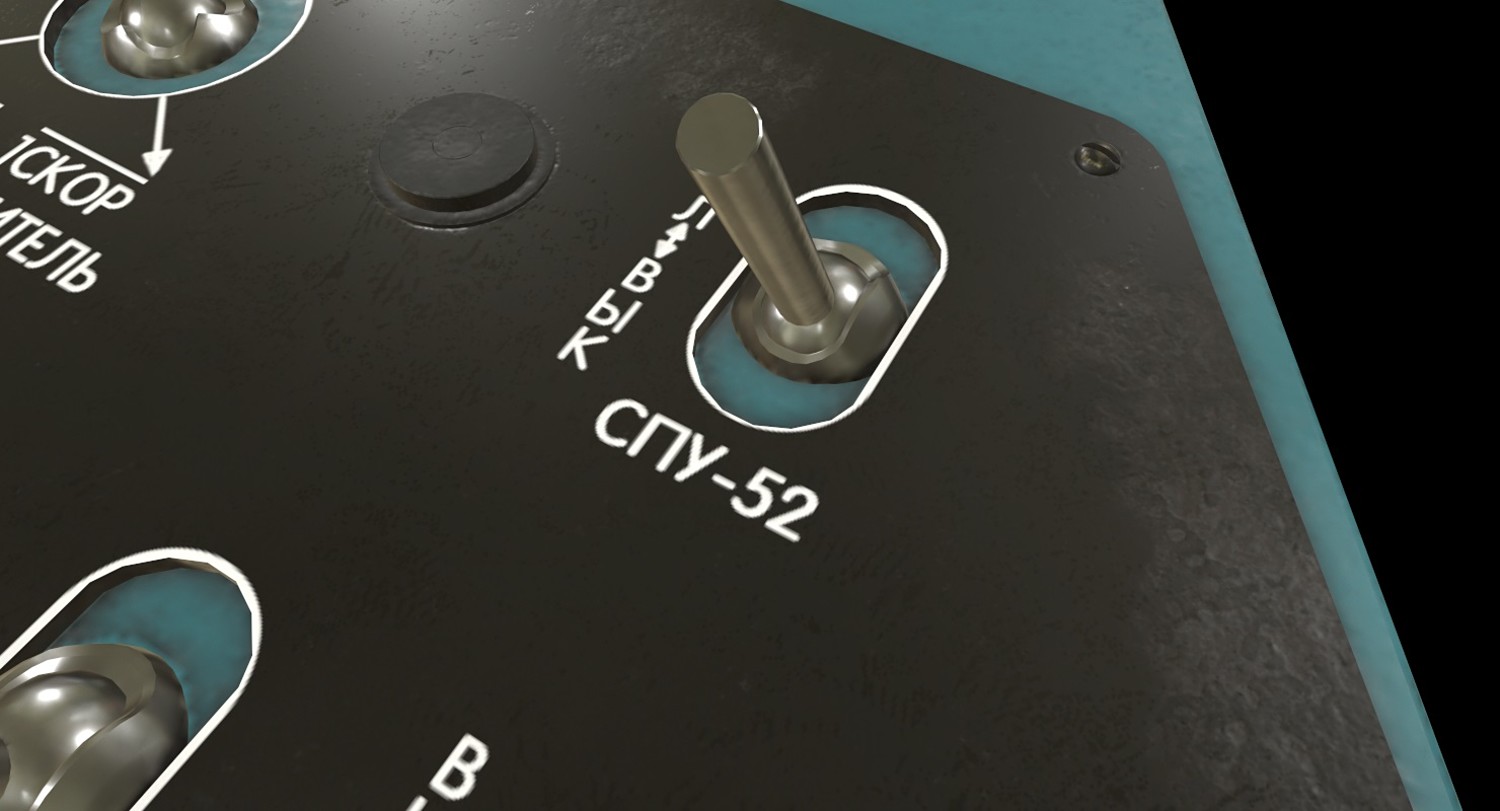

• The model is available with prints in English language (http://cbr.sh/r4wo4i)

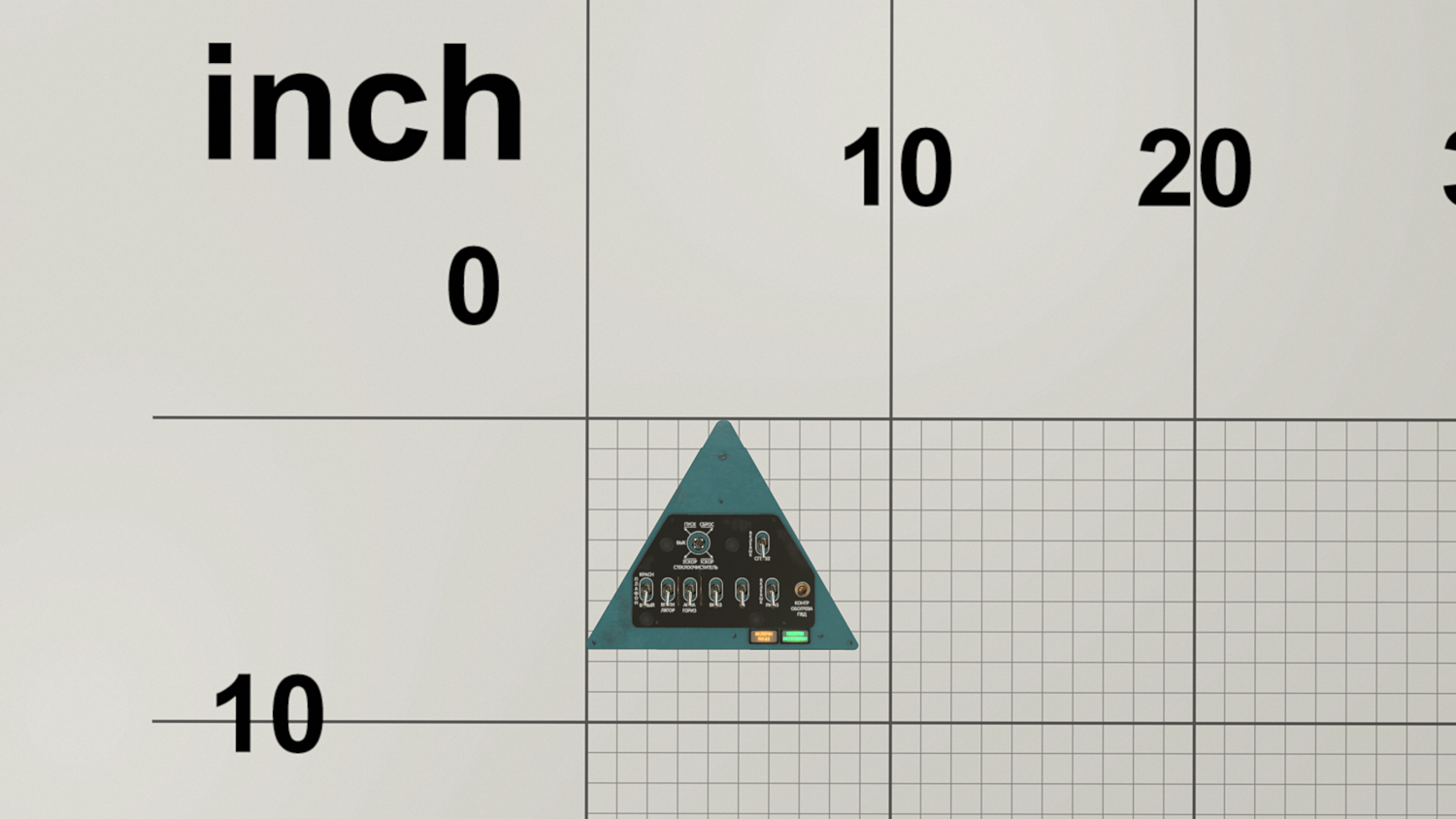

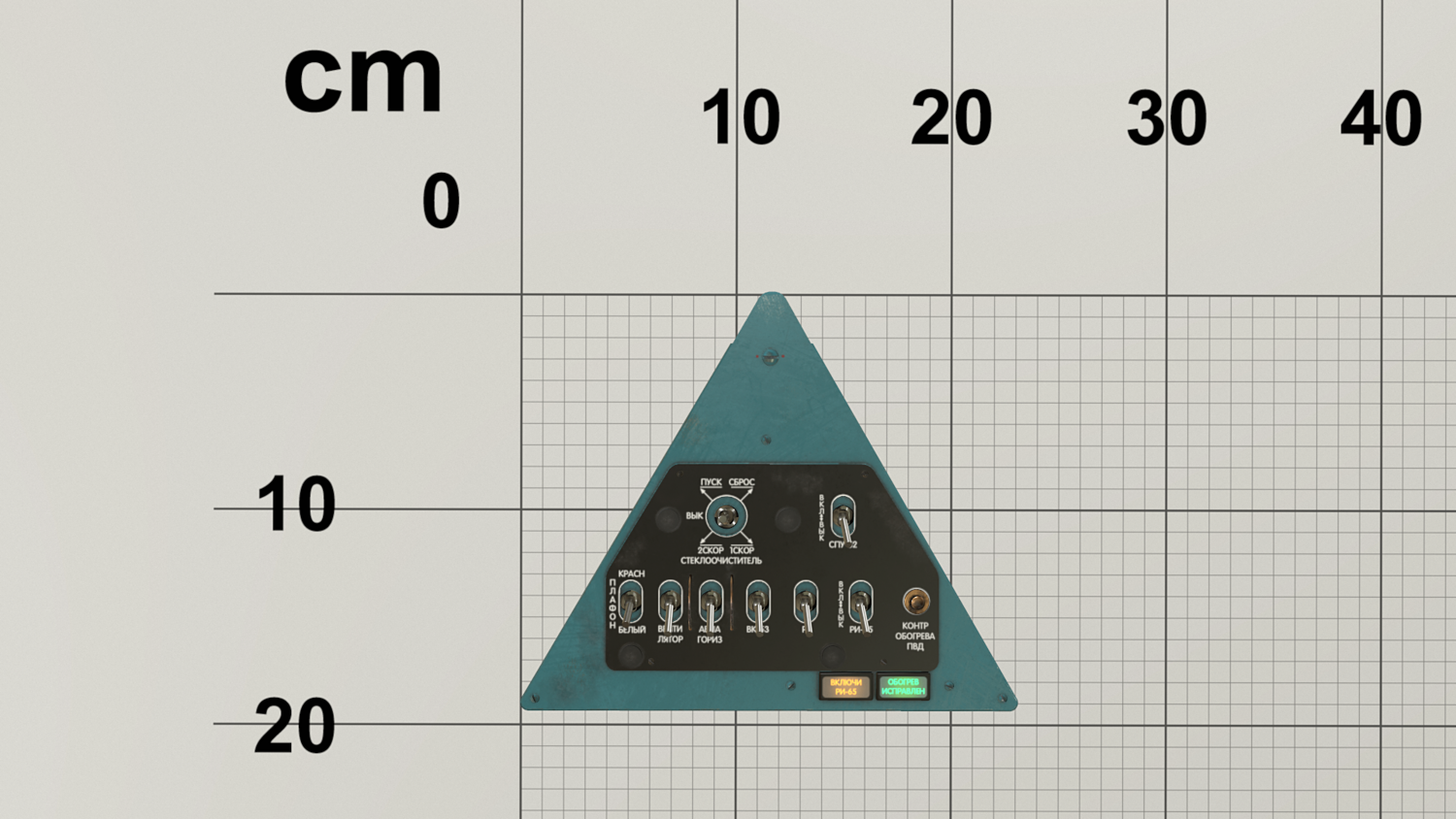

• The model has dimensions 24 x 19 x 4 cm (9.5 x 7.5 x 1.6 inches)

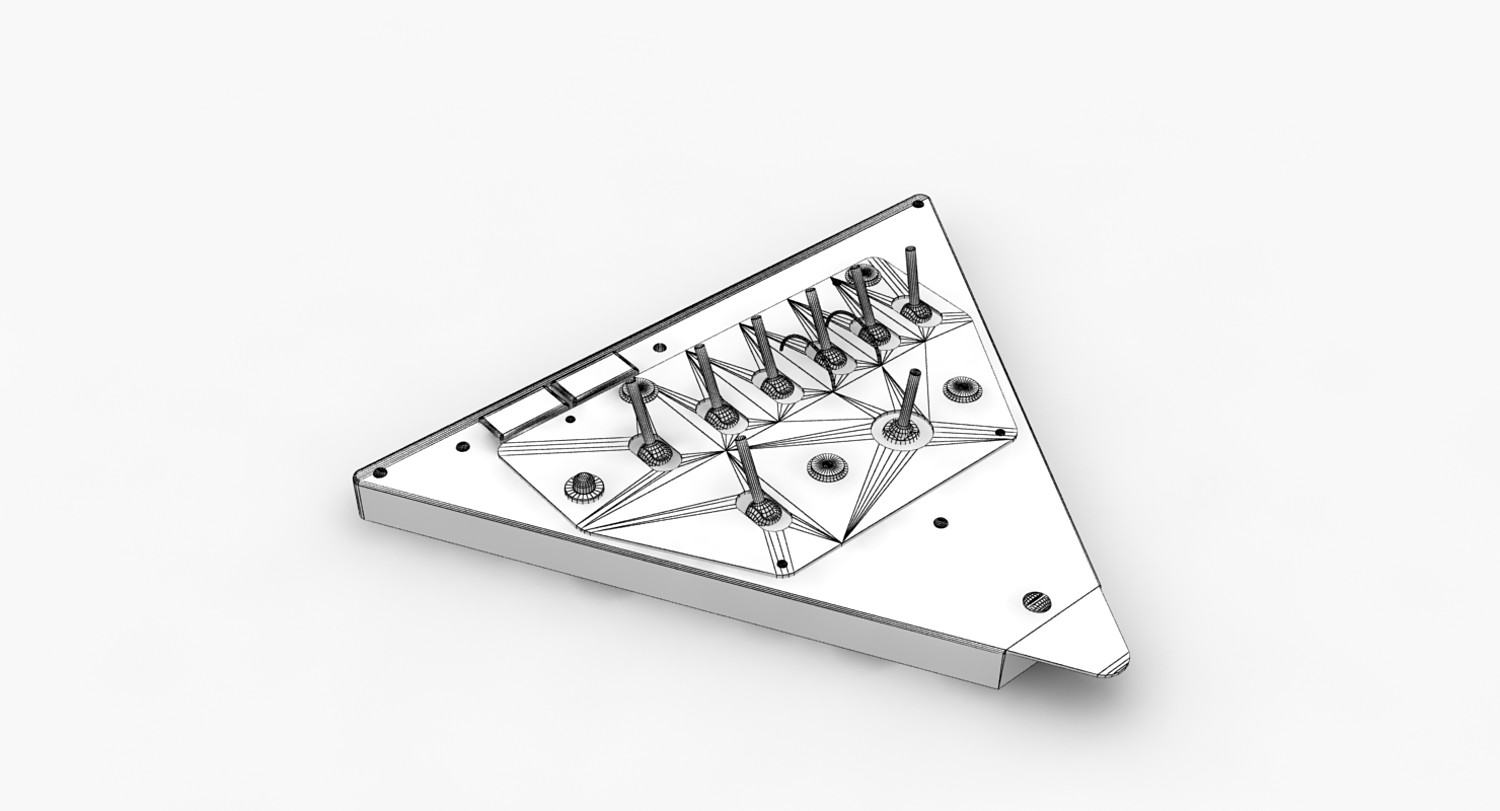

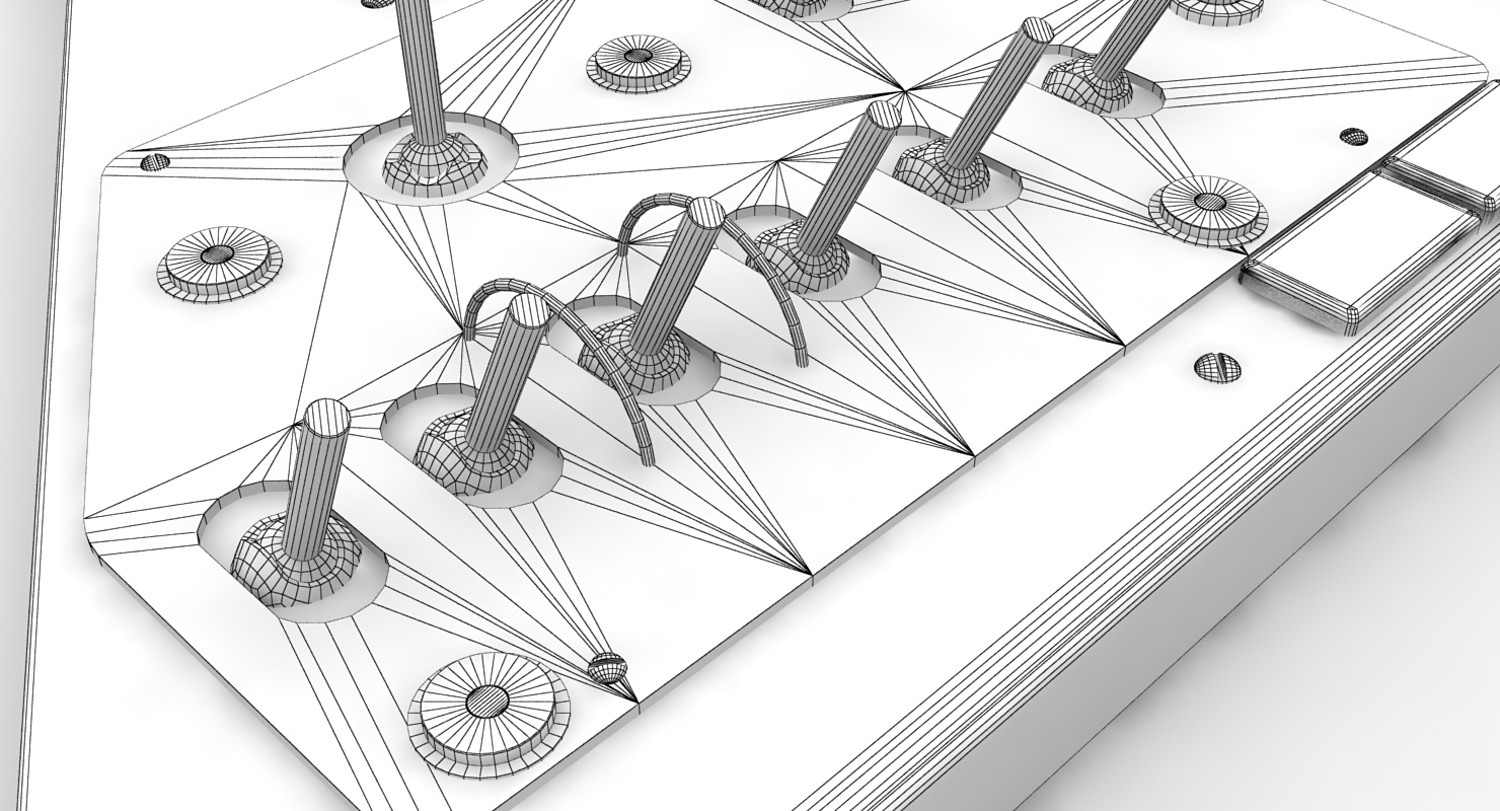

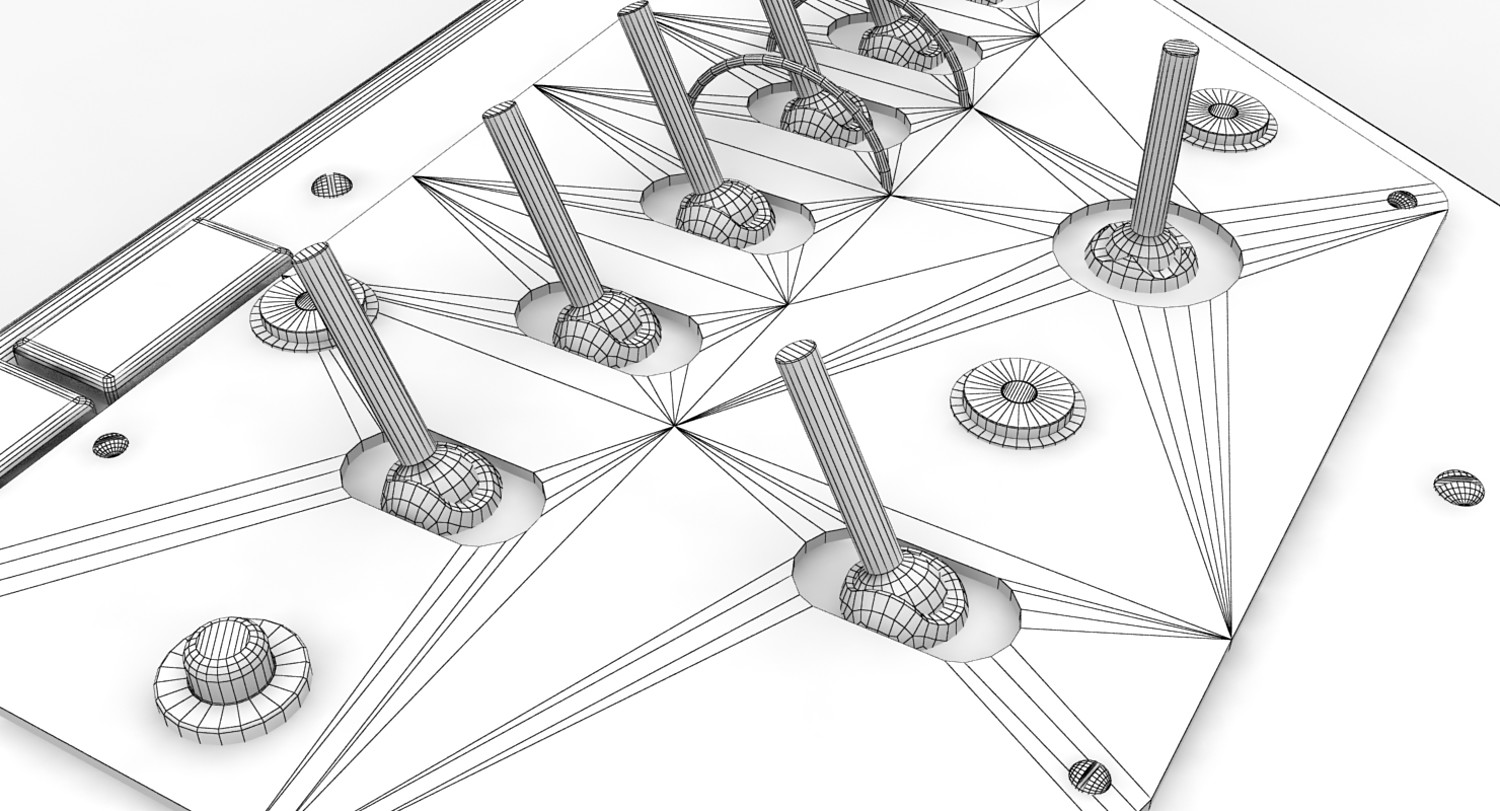

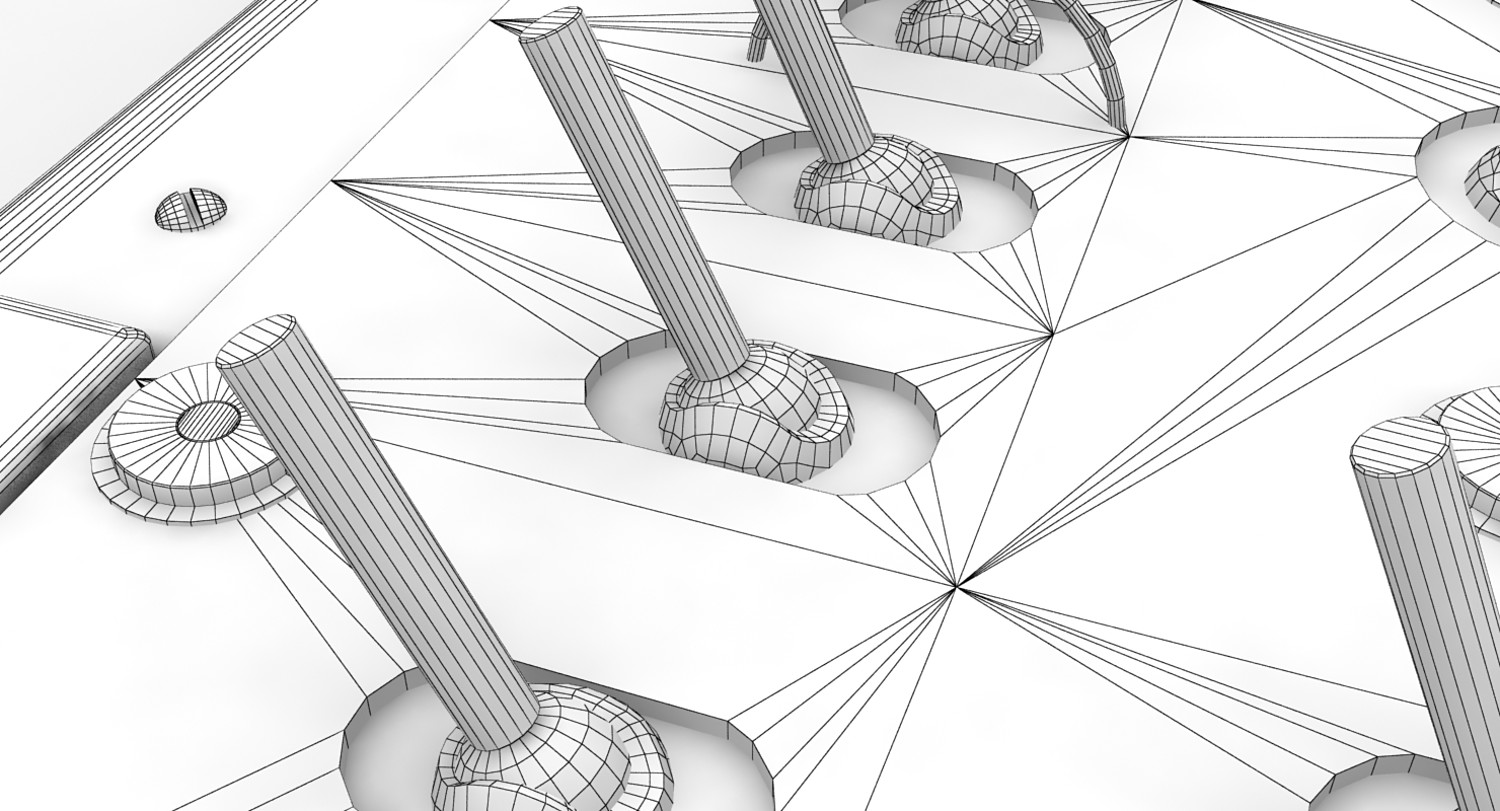

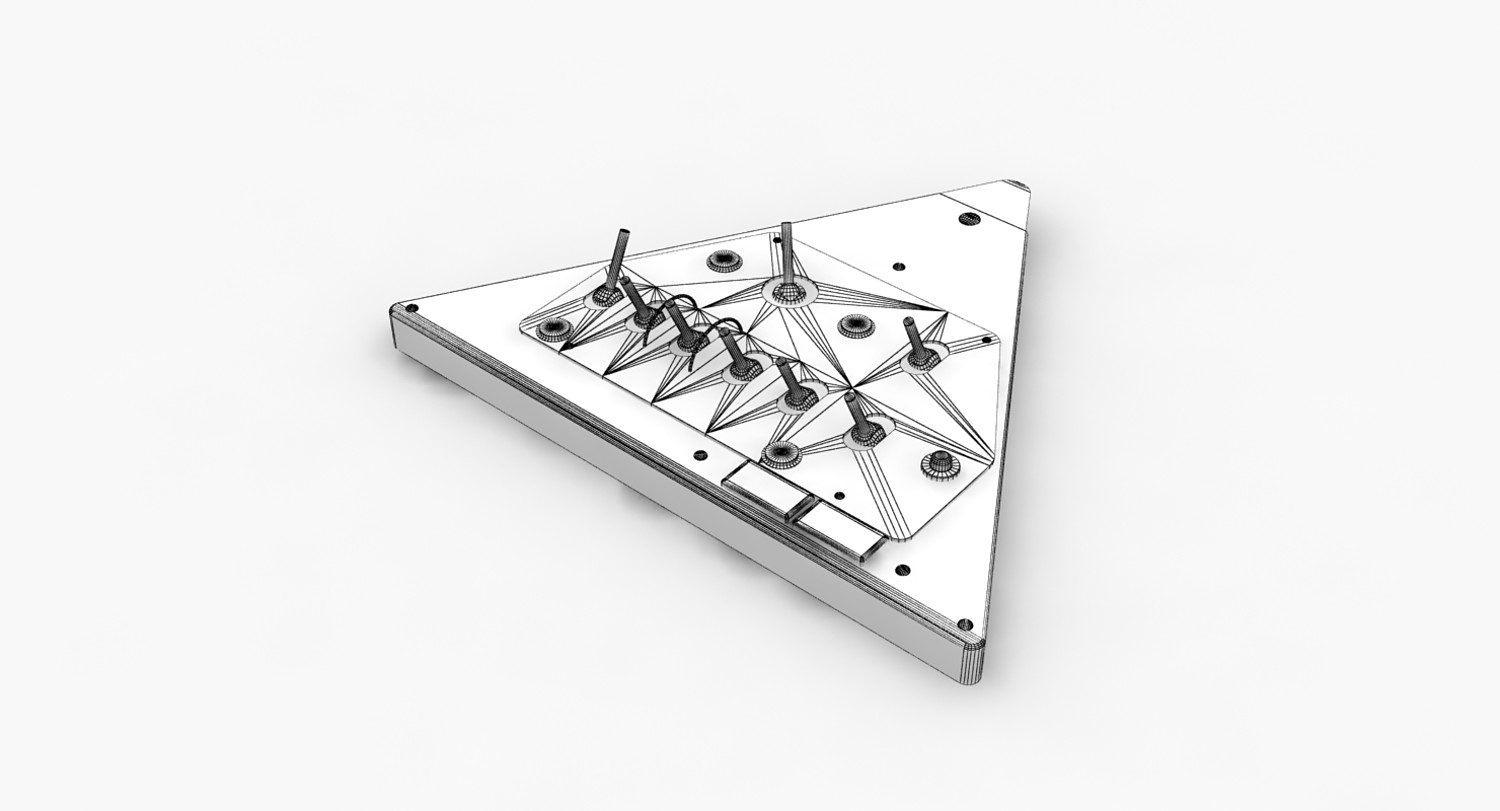

• The model contains 6 444 polys 12 152 tris 6 782 verts

• All parts placed in one layer and joined in one group

• All parts have one material and can be easily merged, if you don't need animation.

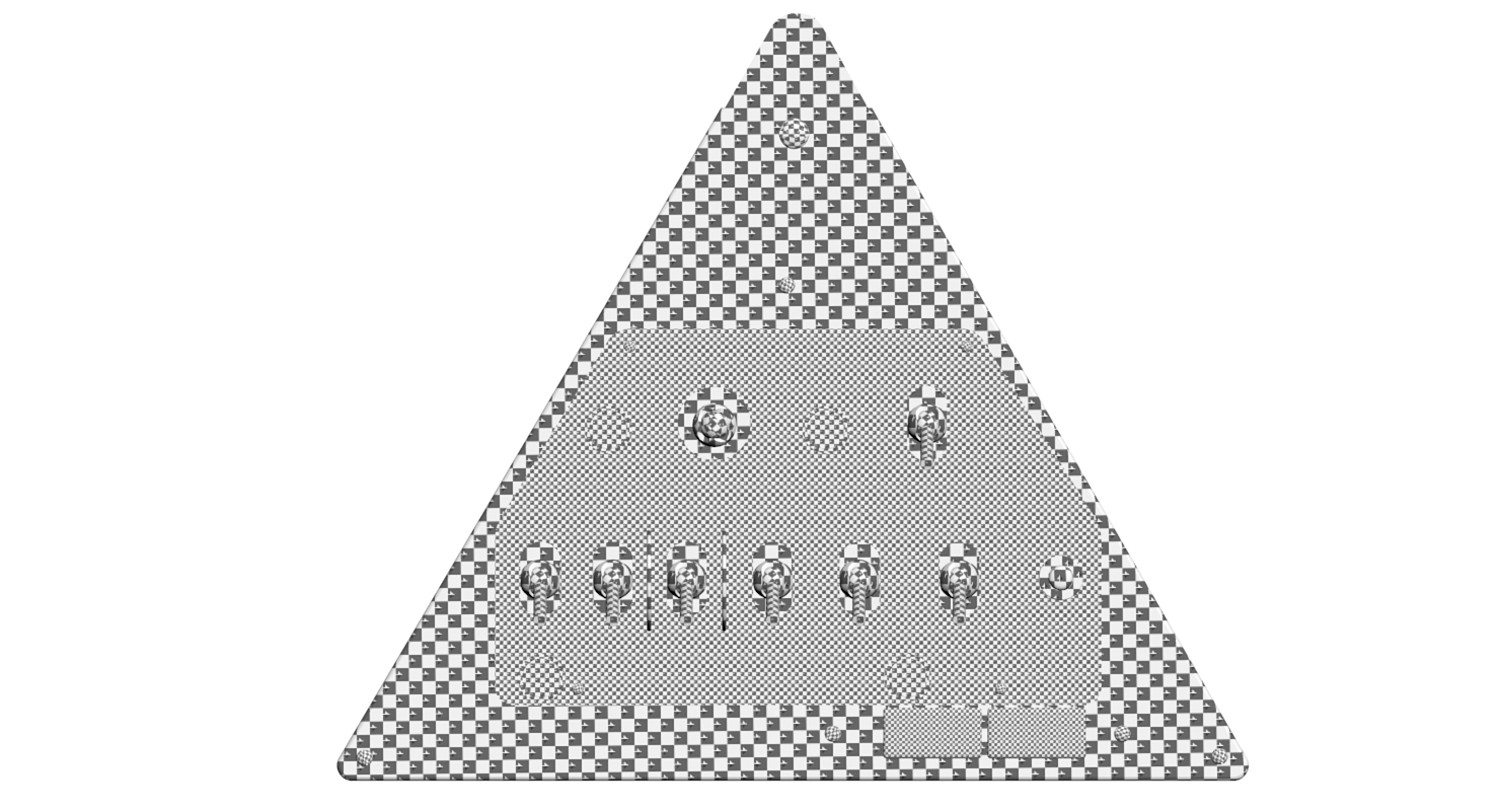

• All parts are fully UV unwraped. No multi-materials or color fills.

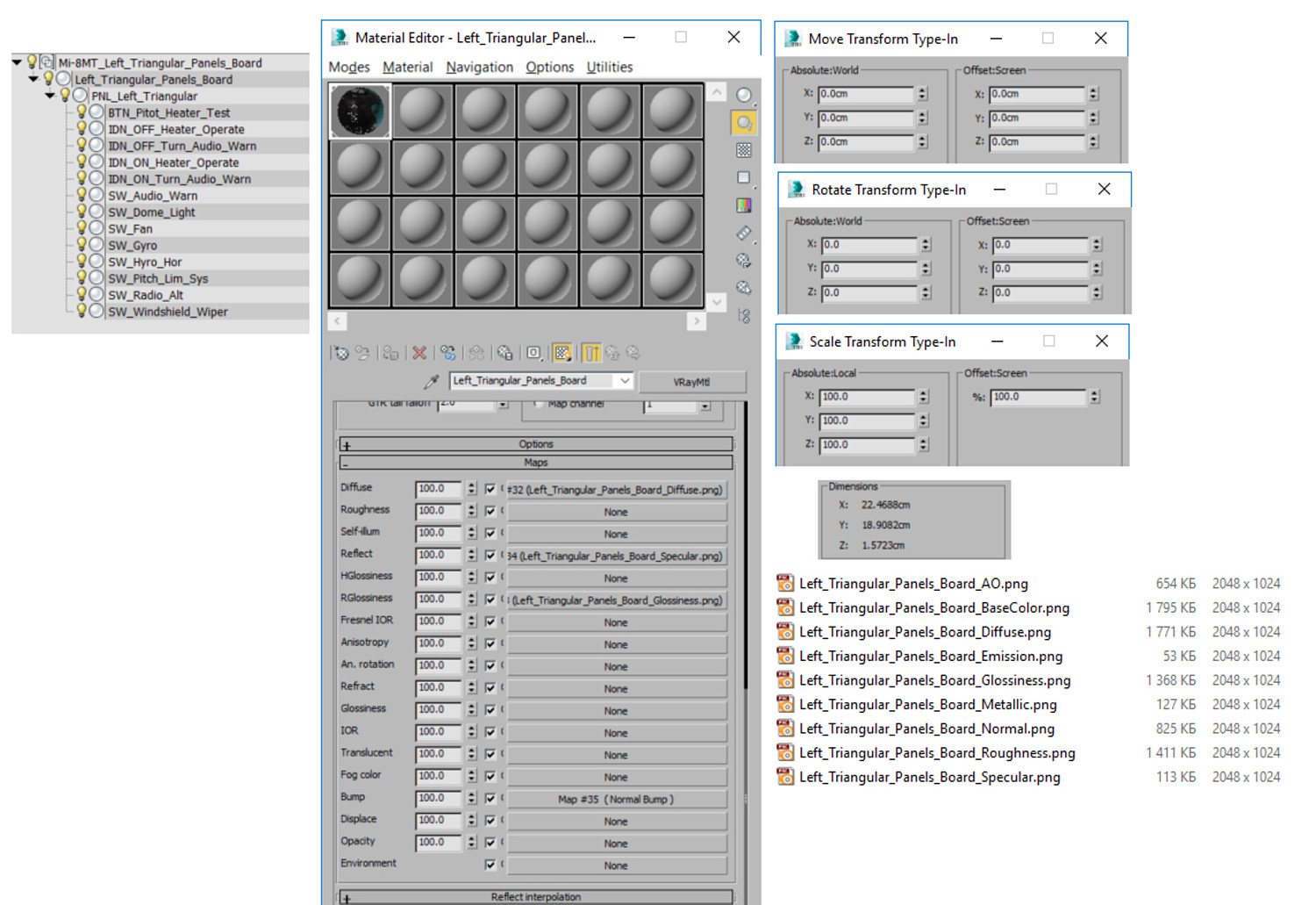

• All parts and materials have logical names and ready for coding. (no names such as Object001 or Default - 01)

• Some identical parts have the same UV coordinates (overlapped). It saves textel resolution and does not influence on Ambient occlusion map (no black spots)

• PBR textures are available for Specular-Glossiness and Metalness-Roughness workflows

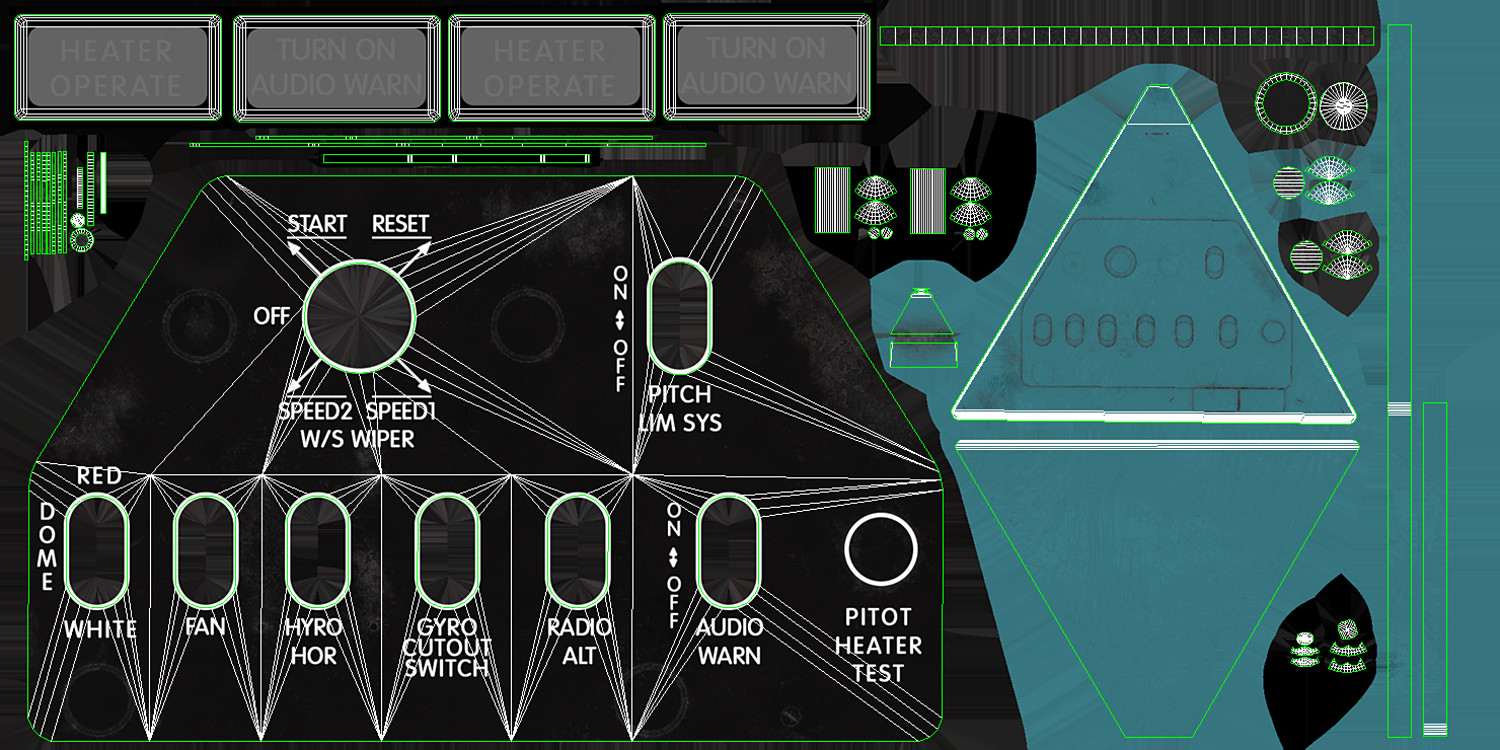

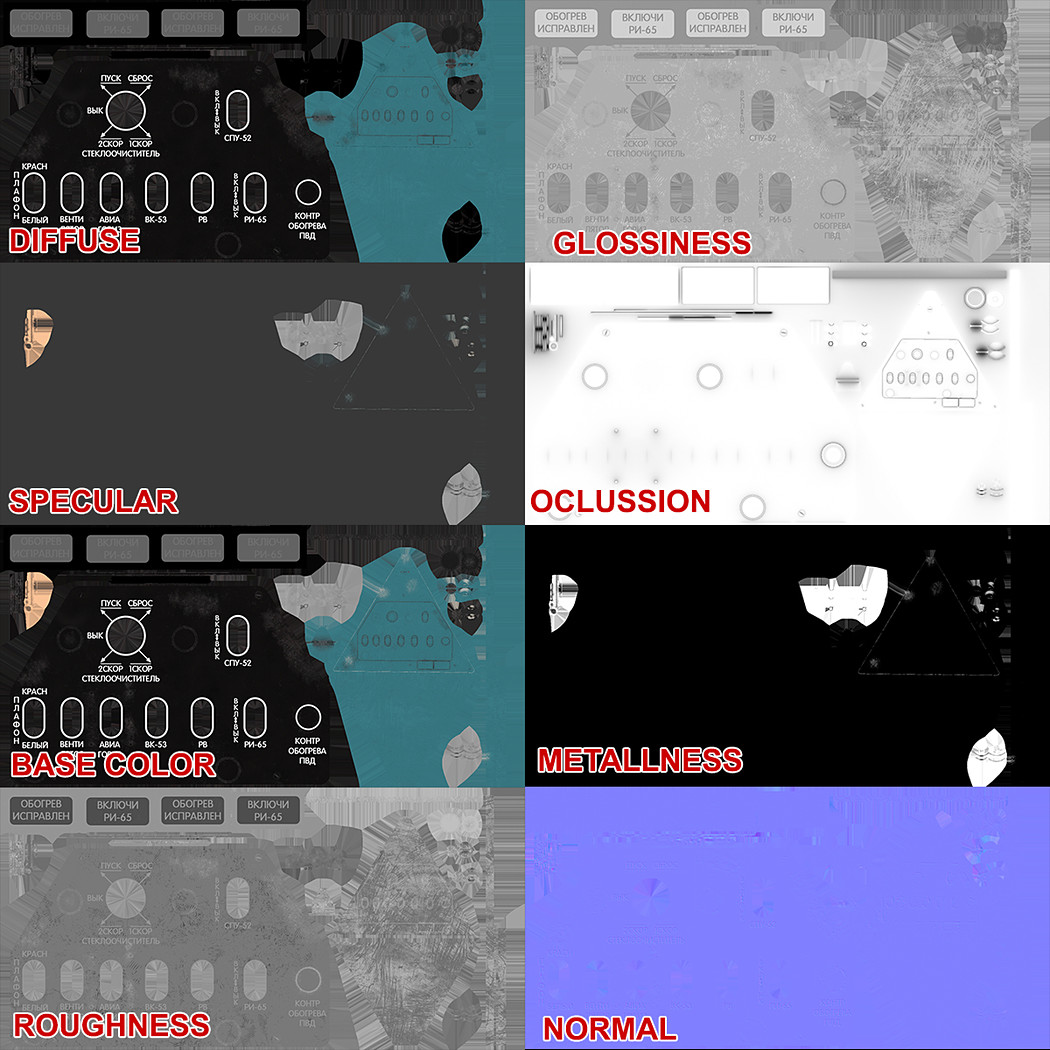

Textures (*.PNG):

Main 2048x1024:

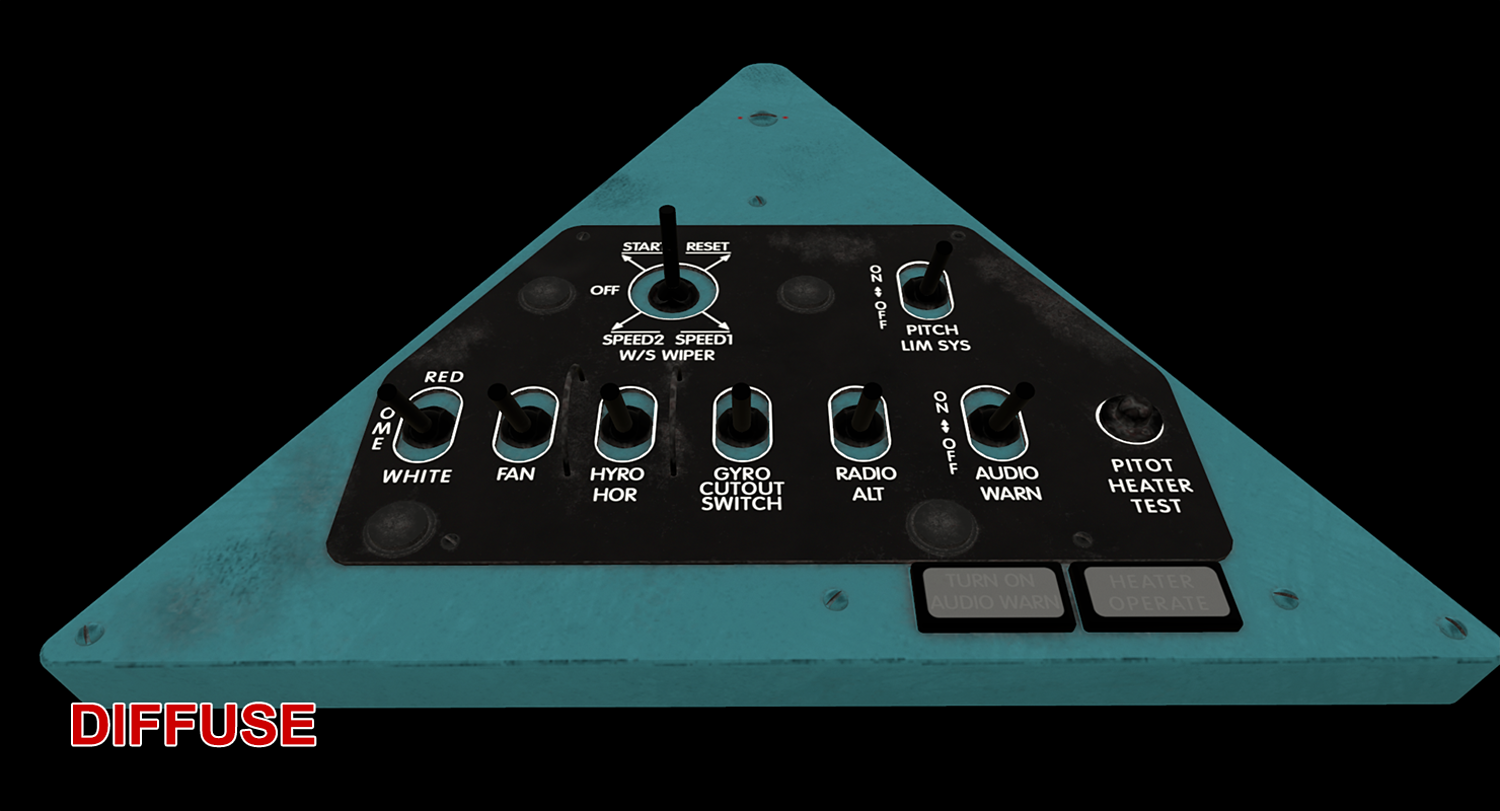

• Diffuse

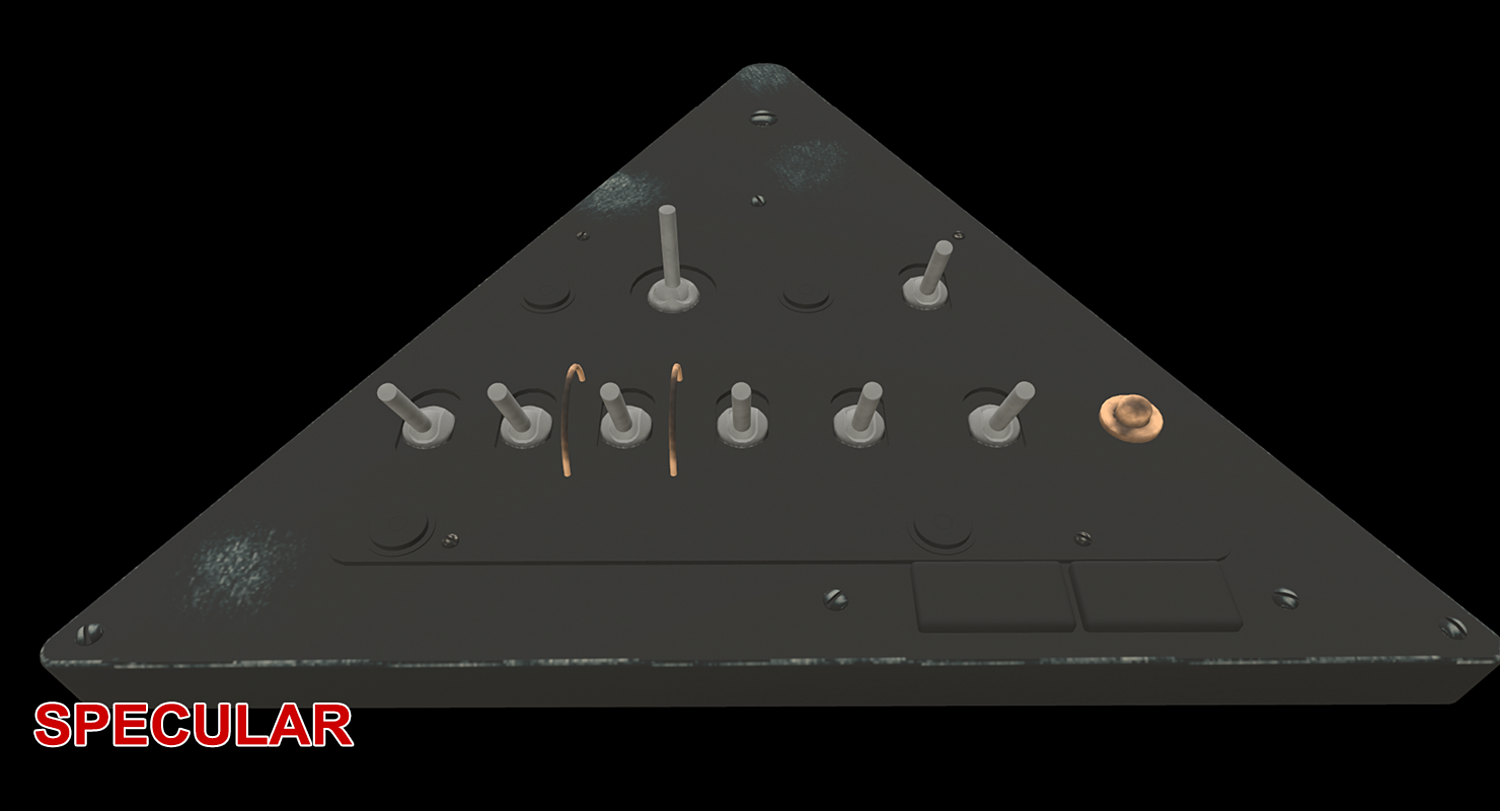

• Specular

• Glossiness

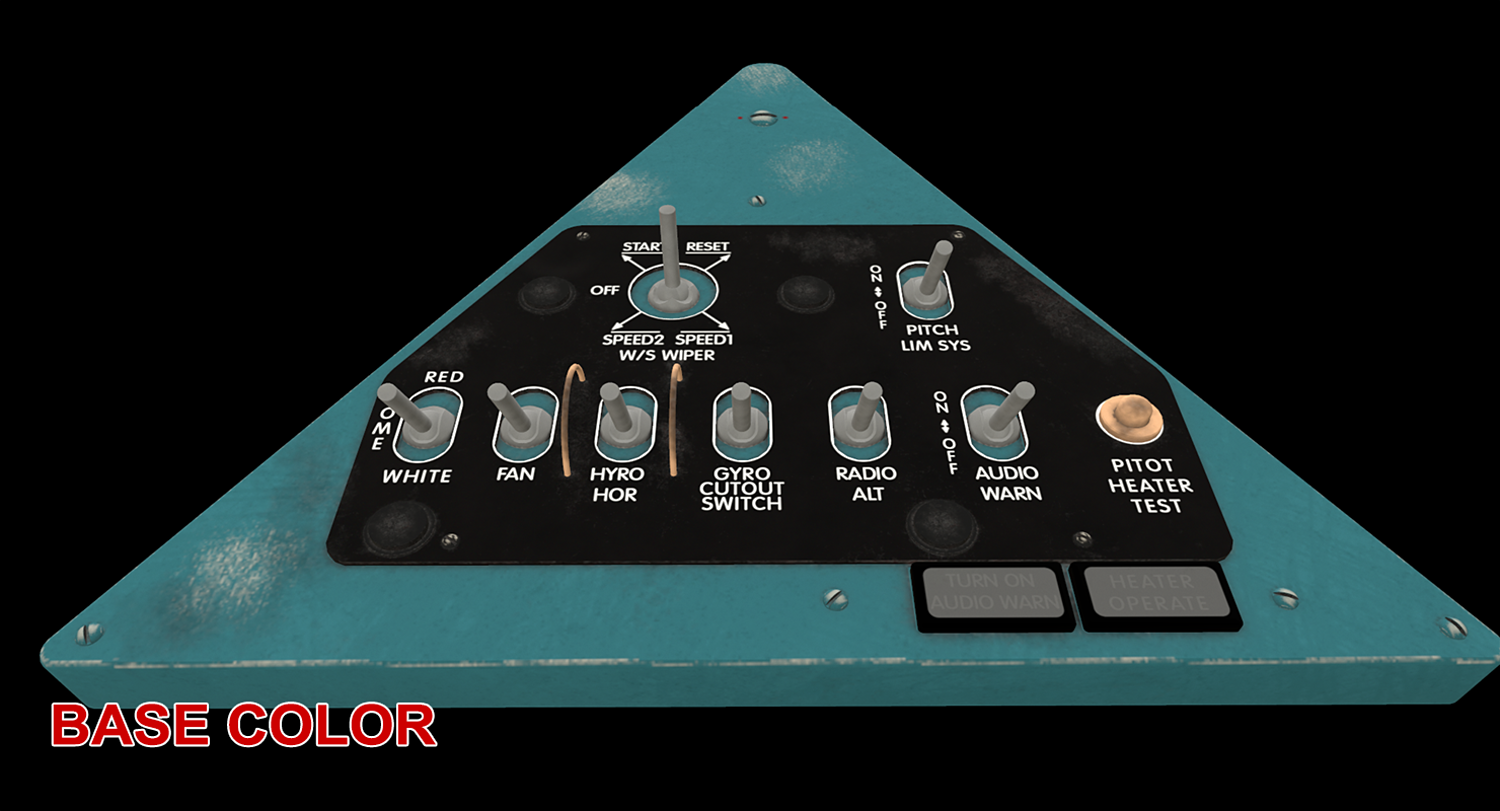

• Base color

• Metallic

• Roughness

• Normal

• Ambient Occlusion

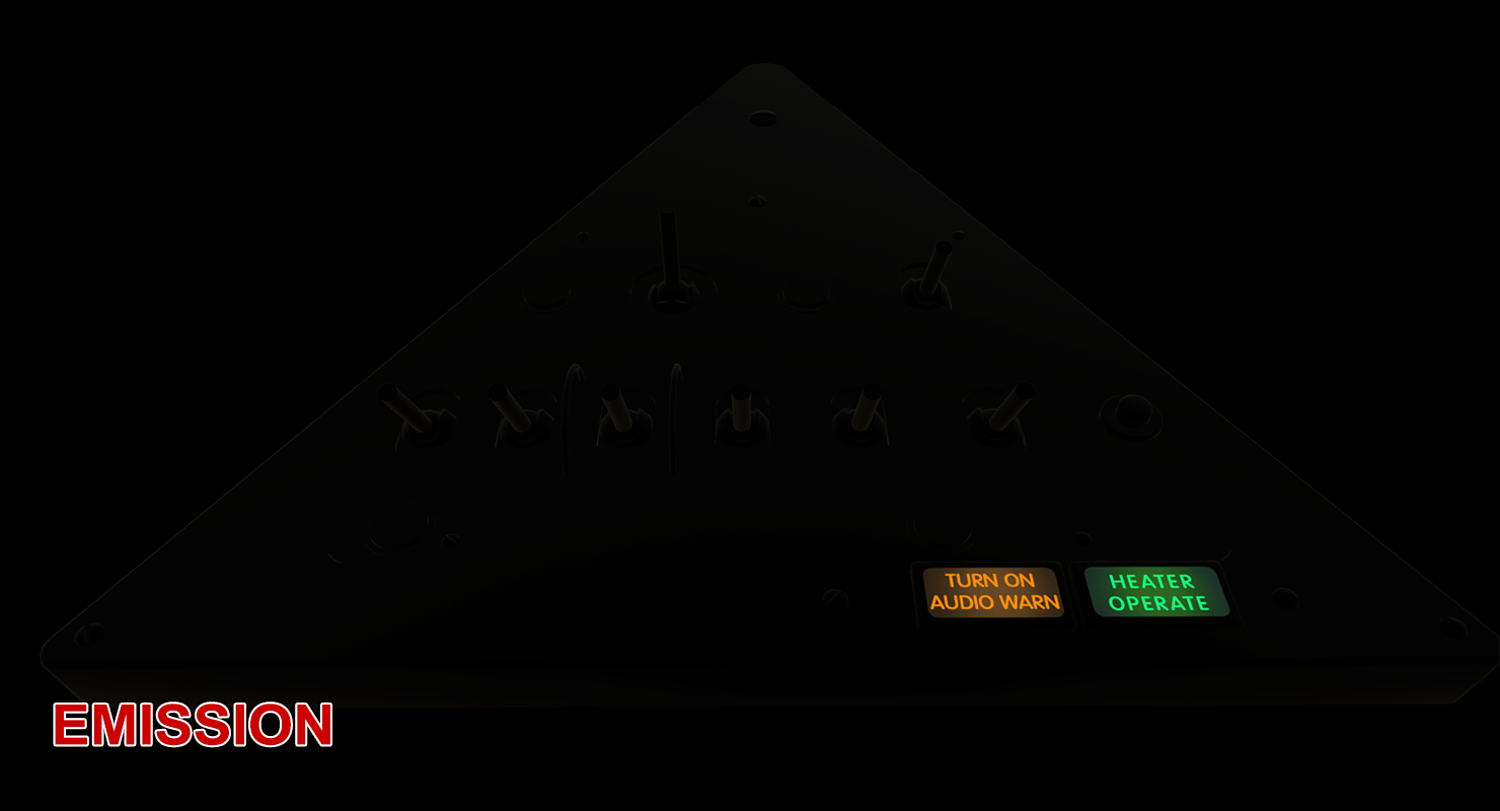

• Emission

Originally created with 3ds Max 2015. No 3rd party plugins required.

Software used: - 3ds Max 2015 for modeling - UV Layout for unwrapping - Photoshop and Substance Painter for texturing - Marmoset Toolbag and V-Ray for rendering

NOT included with the file:

• Light rig/HDRI
• Rulers plane
• Photoshop and Substance Painter source files

Tags: lowpoly pbr game simulator helicopter russia russian soviet gauge cockpit cabin inside mil mi-8 mi-17 mi-8mt aircraft aviation airforce army copter hip
