Weedo Tina2 improvement parts.
For personal non-commercial use.

These are improvement parts for your Weedo Tina2 3D printer and can be printed by your Tina2.

WARNING : this is an add-on for the "Basic" part and won't work without it (see OPTIONS below).

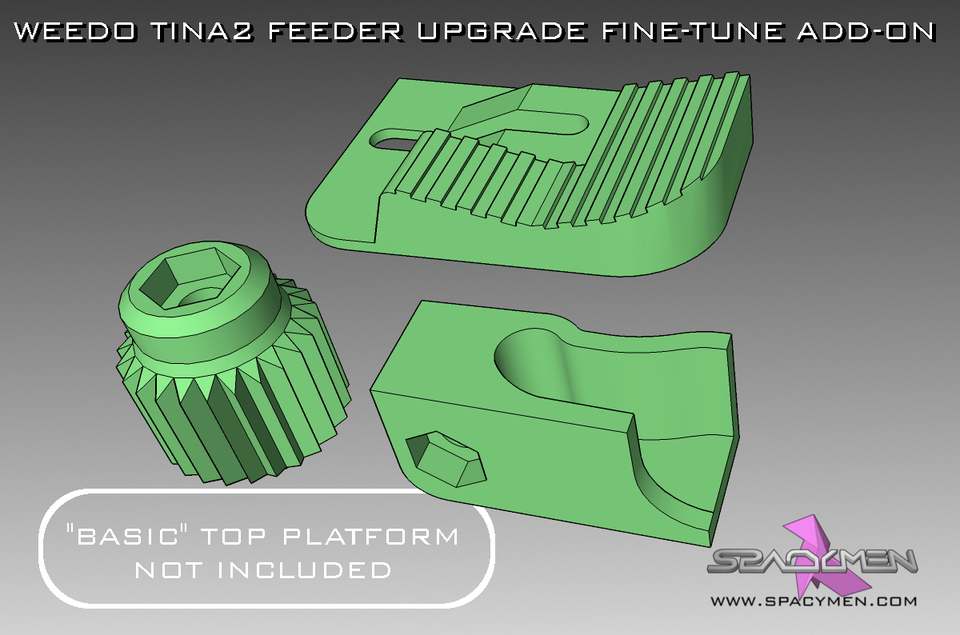

This add-on let you precisely control the feeder's grip pressure over the filament.
A "Lock Up" position mechanism is included. (see Instructions.pdf)
This upgrade isn't compatible with my 1kg spool holders V1 or V2.
I might have to design a V3...
The "Basic" part is mandatory for this add-on to work and is NOT INCLUDED (see below).

FEEDER UPGRADE OPTIONS EXPLAINED

• "Basic" : only includes the "Top_Platform" part (painless filament loading/unloading)
• "Fine Tuning" (add-on) : filament grip pressure control add-on for "Basic" ("Basic" is mandatory)
• "Front Load" : allow front access to the filament release mechanism
• "Complete" pack : all included ("Basic" + "Fine Tuning" + "Front Load")

What you will get

• Watertight/manifold STL files
• Ready to print Tina2 optimized Gcode files
• Clear instructions PDF file

Print Settings

• Rafts : No
• Supports : No
• Resolution : 0.2mm layer thickness
• Infill : 20%

Post printing

Insert two M4 nuts and a 50mm M4 bolt and mount the "Fine Tuning" add-on to the original feeder. Simply follow the included Instructions.pdf file.
